FIRE ESCAPE
DESCENT DEVICE
Designed for high-rise buildings, our Fire Escape Descent Device enables safe and fast evacuation when stairways or elevators are unavailable. Its reciprocating design lets multiple users escape on the same system — an ideal safety solution for residential, commercial, and industrial buildings.
WHEN EVERY SECOND COUNTS
One line out. Everyone follows.
The reciprocating design means the system automatically resets as each person reaches the ground — so a whole floor can evacuate on a single device, without power, without waiting for the stairwell.
Built for the worst moment.
Every part of the ESCAPE Descender is designed around one goal — getting people to the ground safely when every second counts.
Safe & Reliable
Engineered controlled descent you can trust in an emergency.
Easy to Use
Minimal steps — anyone can deploy it under pressure.
Fast Descent
Rapid, governed descent of 0.8–1.3 m/s to the ground.
Multi-User Reciprocating
As one person descends, the system resets for the next.
High Strength & Durable
Aviation-grade steel rope and aluminium-alloy build.
CE Compliant
Meets CE safety standards for escape equipment.

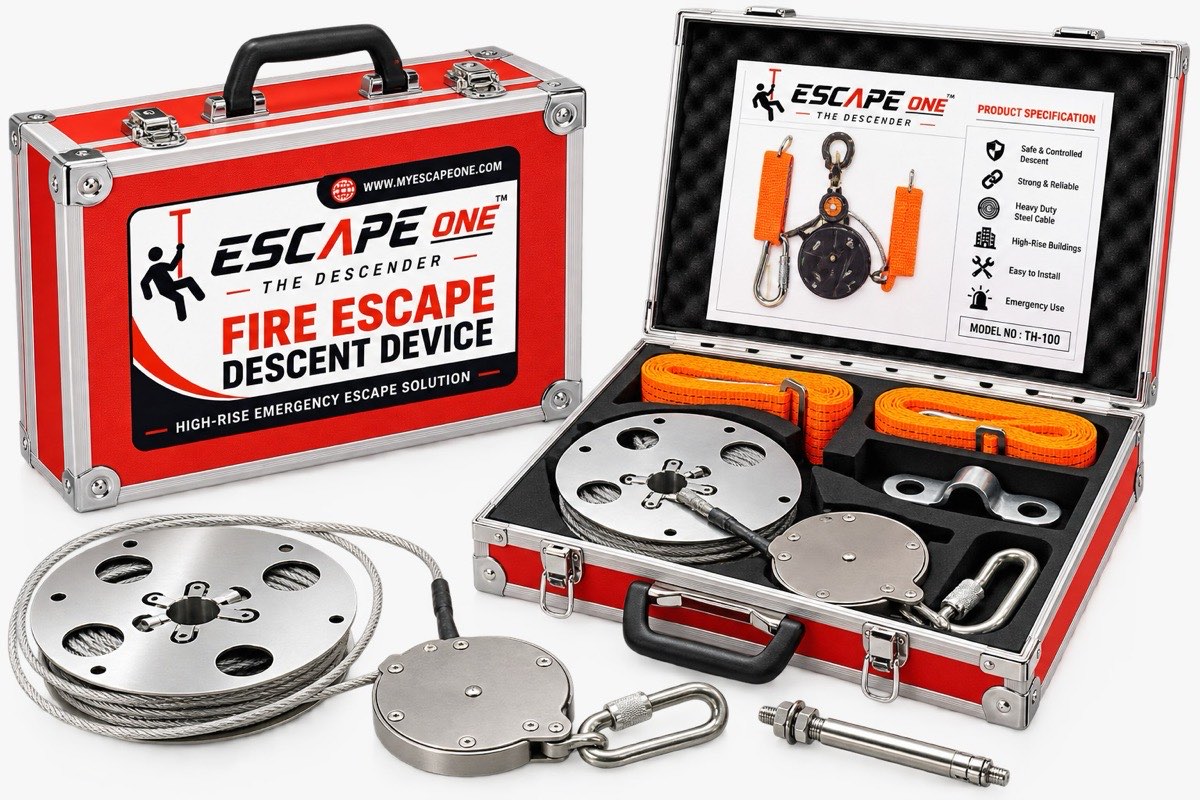

Eight parts, one system.
Everything ships in a single hard case — from the anchor bolt to the harness buckle.
Anchor Bolt
Fixes the mounting bracket into structural concrete.
Fitted once, ready always.
A one-time install at two windows. Read it through before you begin, and make sure everyone at home has practised with the harness.
- 1
Hook in from here — The safety catch clips into the fixing ring.
- 2
Retaining ring — Installed on the bearing.
- 3
Two screws — Threaded through the retaining ring and tightened against the wall.
- 4
Two holes — Marked and drilled — 14 mm diameter, 11 cm deep.
Choose two positions
Find a good position at two windows facing different directions. Install the fixing ring at each one, then hang the descent control device into the fixing ring.
Fit and test the harness
Pull down the safety belt and loosen the safety buckle upward. Put the belt under the armpits and lock the buckle. Pull it firmly several times to check it holds — and teach every member of the family to do the same.
Pack it away
Remove the descent control device, wrap the steel wire around the safety belt and put it back into the toolbox.
Store it in plain sight
Put the toolbox in the most conspicuous place you have, so it can be found immediately when it is needed.
Fixing the bracket
- 2
- Holes to drill
- 14 mm
- Hole diameter
- 11 cm
- Drilling depth
- The retaining ring is installed on the bearing.
- Mark and drill the two holes before fitting anything.
- Thread the two screws through the retaining ring and tighten them against the wall.
- Hook the descent control device in at the ring once the bracket is secure.
In an emergency
In case of emergency, untie the steel wire coil and throw it to the ground — and pay attention to the safety of anyone standing below.
Ground level in six steps.
No training, no power, no panic. Simple enough to follow when it matters most.
Unpack
Open the package and take out the product.
Mount
Secure the mounting bracket to a strong anchor point.
Deploy Rope
Throw the reel to the ground outside the building.
Harness Up
Fasten the seat belt around your waist and tighten it.
Descend
Grip the seat belt with both hands, face the wall and descend slowly.
Next User
After landing, untie the belt — the next person escapes the same way.
Technical specifications.
Certified, tested and rated for real high-rise conditions — from sub-zero mornings to summer heat.
- Model
- PK-20/100
- Maximum Working Load
- 100 kg
- Suitable Building Height
- 10 – 100 meters
- Descent Speed
- 0.8 – 1.3 m/s
- Wire Rope
- Aviation-Grade Steel Wire Rope
- Rope Diameter
- 5.0 mm
- Rope Length
- 20 / 30 / 50 / 100 m (optional)
- Working Voltage
- None
- Material
- Steel, Aluminium Alloy, ABS, Polyester
- Operating Temperature
- −20 °C ~ +60 °C
- Storage Temperature
- −30 °C ~ +70 °C
- Standards
- CE
- Net Weight
- 8.5 kg (±0.5 kg)
Wherever people work, live and gather.
From apartment towers to hospitals, the ESCAPE Descender fits any high-rise safety plan.
Why choose ESCAPE.
Fast Deployment
Ready in seconds, no power required.
Reliable Performance
Consistent, governed descent every time.
Robust Construction
Built from steel and aluminium alloy.
Automatic Speed Control
Centrifugal braking keeps descent safe.
High Safety Standards
CE-certified escape equipment.
Suitable for High-Rise
Rated for buildings up to 100 m.
WHEN EVERY SECOND COUNTS
Don't wait
for the stairs.
Talk to us about protecting your building. Get pricing, rope-length options and installation details for the PK-20/100.
